Pebble dash stucco replaced
Paeonian Springs, Virginia

Here's how we did it :

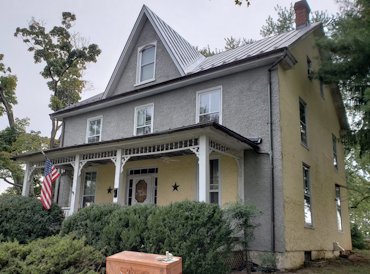

Original 1901 house was wood clapboard in Virginia

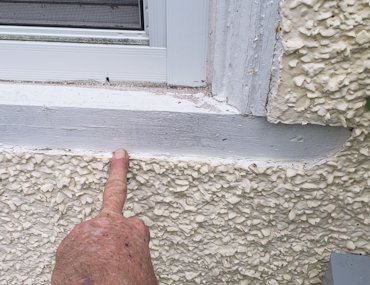

Original 1901 house was wood clapboard, and was stuccoed in the 1930's. Stucco is out past the window sills.

Sill extensions.

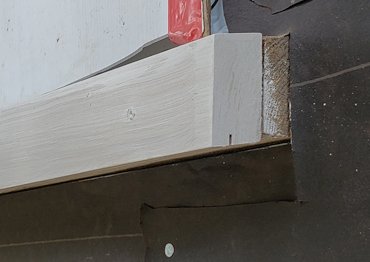

Sill extensions are added on. Note the drip groove on the bottom of the sill.

The reason the stucco failed is that interior lath was used.

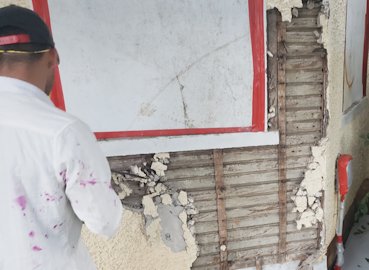

Stucco stripped off. The original clapboad wasn't in bad shape. The reason the stucco failed is that interior lath was used.

failure of the stucco in Great Falls, Virginia

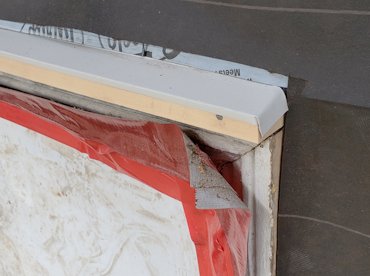

Back of the window trim is sealed by folding over Protecto-Wrap. Sealing the windows after the stucco is done doesn't work.

Brown coat is rodded off

Flashing is put over window, overlapped with Protecto-Wrap, and then tar paper..

hand tooled cement details.

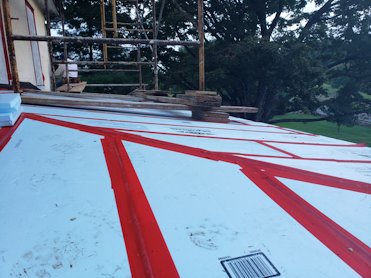

Standing seam metal roof is covered with styrofoam. We used score-board. Foam is scored every 16 inches for a good fit in between the roof seams.

The top band is formed

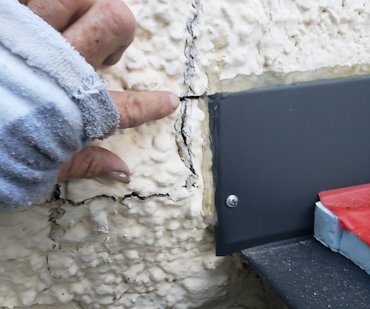

REGLETS DON'T WORK ON STUCCO ! The groove in the wall is called a reglet, which allows the flashing to be bent into the wall. This works good on masonry, but not stucco.

Metal lath is nailed on and the bands are filled in.

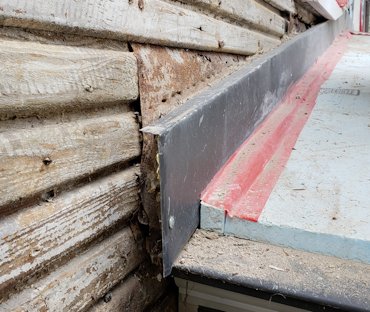

Stucco stripped off exposing the counter flashing. Note the original 1901 rusty steel flashing behind.

Round member is run using a full water bottle

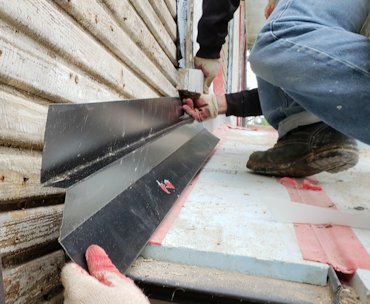

Our typical stucco stop type flashing forms a roof over the reglet flashing.

detail is tooled in using a homemade rod.

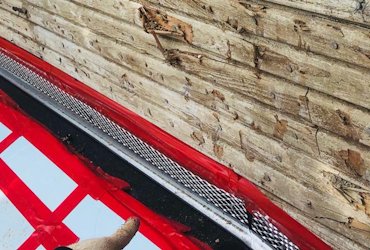

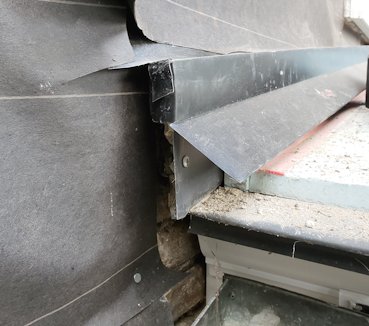

Back of the flashing is sealed with tape and overlapped with plaster stop.

Round member is run using a full water bottle

Edges are folded over and the flashing is then overlapped with tar paper. Tell me this will leak and I'll call you a liar.

detail is tooled in using a homemade rod.

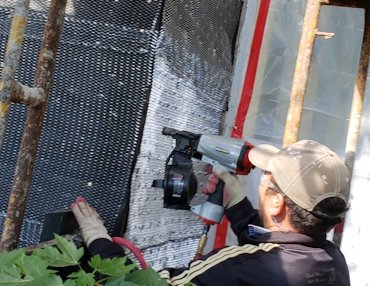

Self furring metal lath is shot on with roofing nails.

Round member is run using a full water bottle

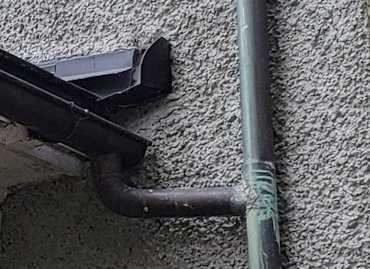

Yet another view of the porch roof shows the kick out flashing that diverts water into the gutter.

detail is tooled in using a homemade rod.

Pebble dash should last a lot longer than eighty years this time.
