Additions and remodel for Morris-Day

flashing tudor members
 flashing tudor members

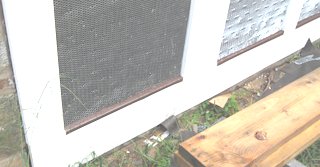

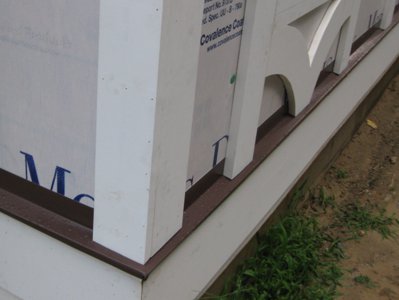

A view of the flashing over the horizontal trim.
Stucco is porous, when water runs downhill
(as always), it hits the flashing and is deflected

outward and not behind the trim. 		Flashing is then overlapped with tar paper and metal lath. Even though this project has plastic (I mean PVC), flashing is important.
Even if the trim doesn't rot, what the trim is nailed to will rot if exposed to water infiltration.

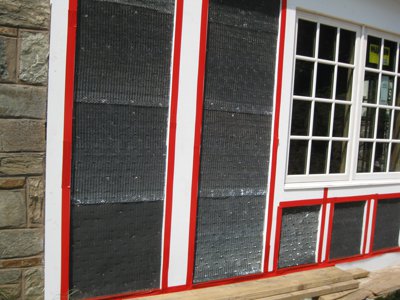

self ing lath

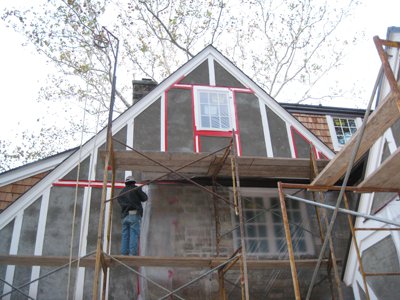

 braown coat
Taping off this PVC trim turned out to be a
waste of time. Mortar scrapes off the trim easily. 		Stone work and roofs are covered up well with plastic.
Old texture
 new texture

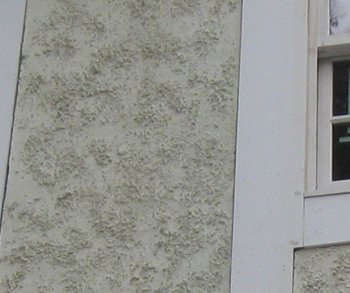

OLD WALL:

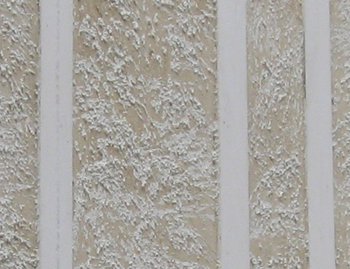

A close up of the old texture. 		NEW WALL:
Texture matches on the money.
sieve to screen gravel
 seive

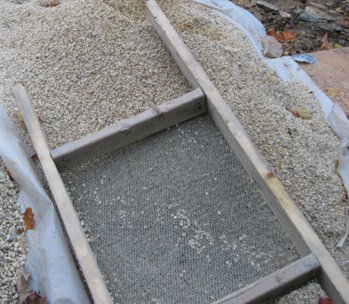

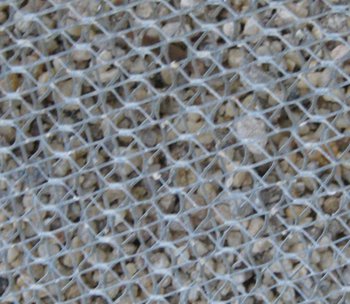

Rocks are screened with a home-made sieve
to the right size. 		A custom screen size is made by using 2 layers of metal lath, tied crossways.

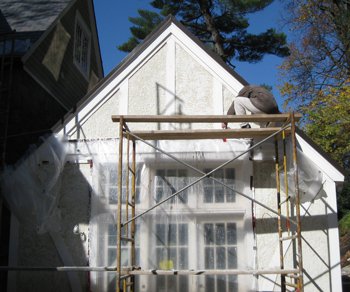

finished wall
 kitchen side

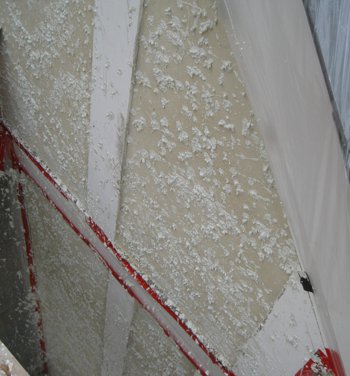

The finish coat is done in two steps, first,
a scratch coat of white Portland and sand
is put on and floated. Then a mix of white
Portland and our screened rocks are dashed
on. A cheap stiff broom from the dollar
store worked perfectly for this. 		A view of the kitchen addition.
