Here the scratch coat goes on self-furring metal lath. |
Remember the rotten chimney from the last update?. Drip cap on chimney
prevents so much water from running down, prematurely deteriorating
the chimney. If you have visited my site before, you have seen this is
how we do our chimneys. Here, each side is stripped with straight one
by
fours and filled in. |

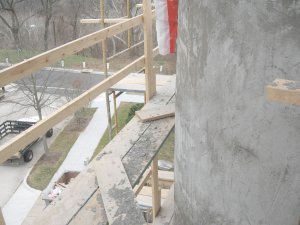

A view from the scaffold shows a safe scaffold.
Planks are nailed together. Guard rails will support a minimum of 150
pounds against them. |
 |
 |
 |

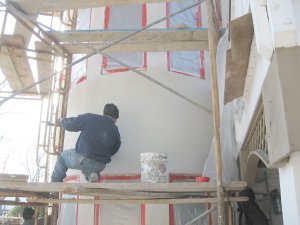

Here, Mynor rubs the finish coat with a rubber float. We make
our own
crack resistent mix of
portland and sand, colored with color from
La
Habra stucco. |

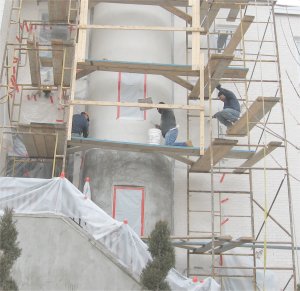

Finishing the big tower. |
What am I looking at ?

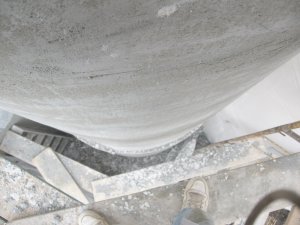

A view from the main tower looking down.
Tower is straight. |
 |
 |
 |
The old stairway had real stucco that was solid, it just
looked sloppy.We
resurfaced the

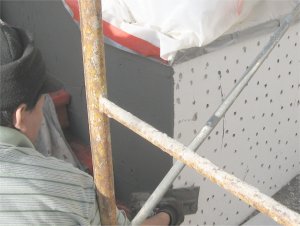

old stucco by first chipping the wall about every 3 inches. |
A basecoat of about 1/4" is put on using pure flex-con (an
acrylic
admixture), instead of water. The basecoat is left rough for the finish
by rubbing with a rubber float. This method provides a permanent
application. |
We made a simple sill by bending metal flashing.
The flashing
is then cut to the round
shape of the wall. |
 |
 |
| Here is the counter flashing we used on the penthouse.
Flashing
is put on and overlapped with stucco. This counter flashing is critical
to prevent water infiltration with snow and ice on the roof. |

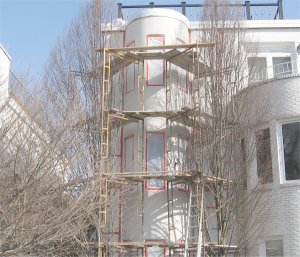

A view of the third stair tower showing the scaffold we built
in the
trees.
All's well that ends well. EIFS gone, the owners don't have to
worry about rot.
|
