Pebble dash stucco addition
in Falls Church, VA

Here's how we did it:

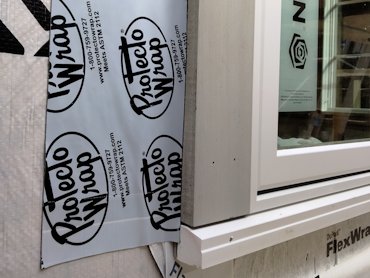

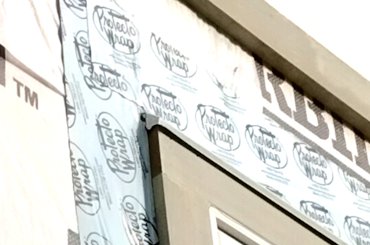

Protecto wrap is folded sealing the back side of the wood trim. Any water penetrating the stucco won't go behind the trim. Behind the trim is covered with house wrap.

Metal flashing is put on at a steep angle and the top flange is sealed with protecto tape.

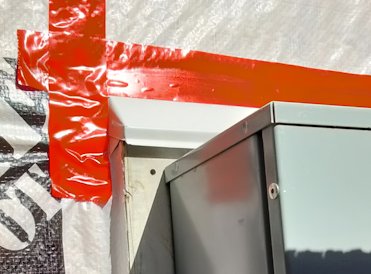

Electrical panel is bolted to a board. We flashed over the board and sealed with tape.

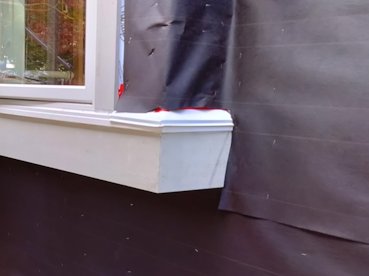

Every horizontal trim board has flashing put on the top. Here a layer of tar paper overlaps the top of the flashing.

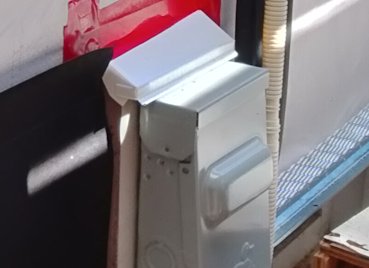

Fuse boxes, receptacles, etc. are mounted on a trim board and we put on flashing.

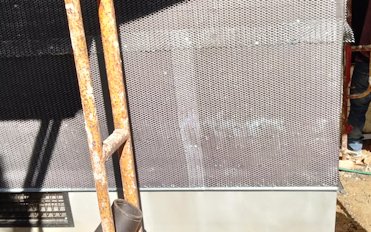

Plaster stop over the foundation has weep holes drilled. Here we are putting on self-furring metal lath.

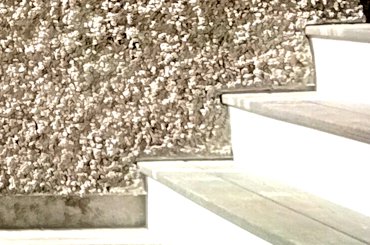

Finished wall showing weeps over the stairs and the patio.

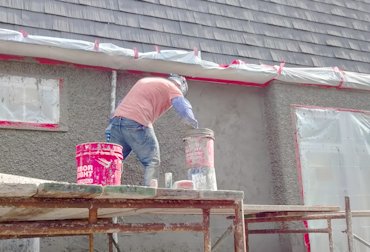

Dashing on the pebble mix. Everything is covered real good including the soffits.

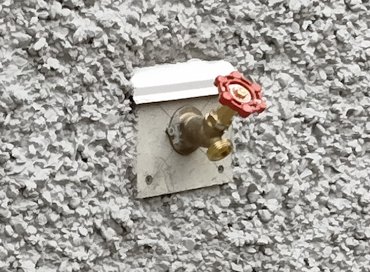

Hose bibs are done the same way as the electrical penetrations. Bib is mounted on a board, and flashing is put over top.

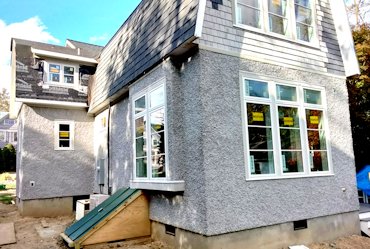

Finished product-just like 1903.

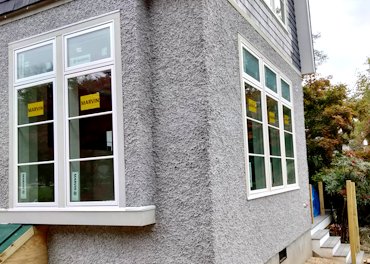

Another view.

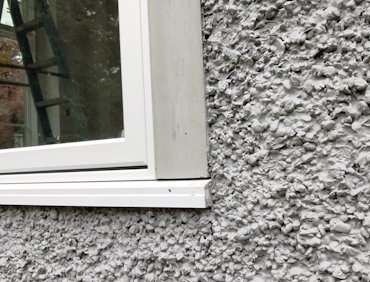

No ugly gob of caulking around the window
