Jobs in progress-updated June, 2015

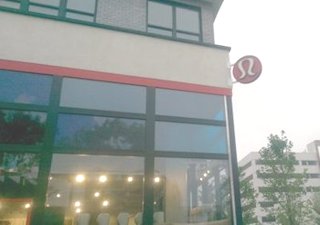

Lululemon
Mosaic area
Merrifield, Virginia

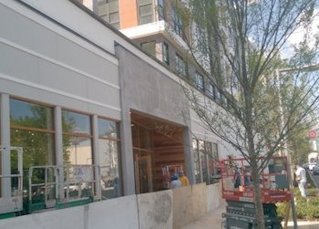

Stucco band in  Merrifield, VA the first building with real stucco in this area since
                the 1960's
We did this work for a great company named Commercial Construction Management from Upper Darby, Pennsylvania. I have a contract to do the stucco band on the store next door. It will be here in the future. What ? Cheap EIFS ? Even though the design criteria of the whole Mosaic area doesn't permit EIFS, the people who built the Great Gatherings store weaseled out and put up flimsy foam EIFS. EIFS looks particularly bad when it gets beat up and you can see the shabby looking styrofoam.
plywood bolted to the concrete with Bituthene lightweight
.7 mil painters plastic

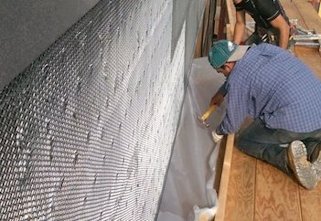

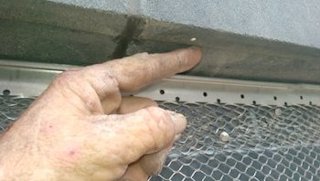

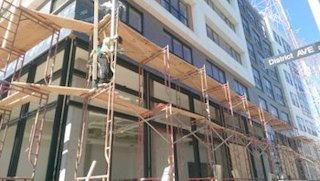

We nailed up self furring lath to the plywood. The dimples on the lath are spaced about 3" O.C. and hold the lath out from the wall a quarter inch to allow the mortar to squish behind the lath for a good bond and reinforcement. Here, we are nailing a plastic splatter shield to the scaffold. The cast stone sill over the stucco protrudes a good 5 inches past the stucco and has a drip groove underneath. This good design means our stucco should last for centuries. A 3/4" plaster stop also know as casing bead, is nailed to the top and the bottom to establish the wall thickness.
plywood bolted to the concrete with Bituthene plywood bolted to the concrete with Bituthene

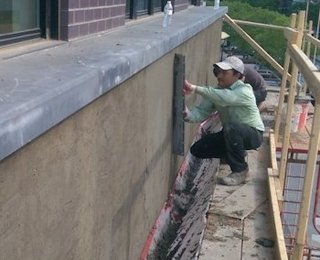

The wall is filled and rodded off in between the stops. The natural white finish is White Portland cement, white lime and white sand.
