Siding replaced with stucco
Waterford, Virginia

Here's how we did it:

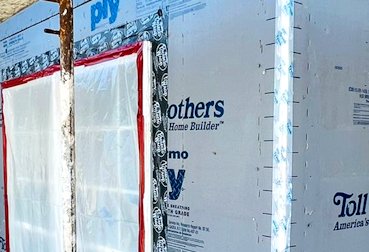

Therma Ply Waterford Virginia.

We pulled off the siding revealing silver cardboard called Therma Ply. I thought there is a code saying the corners should be reinforced with plywood or OSB. We sealed around the windows with Protecto Wrap.

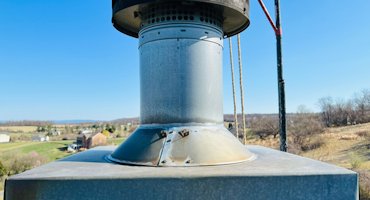

metal chimney caps.

Better than most metal chimney caps we see. The center is lower than the sides allowing water to pool. Pooling water runs right down between the gap on the flange. Nobody is coming up here with a 40 foot ladder to inspect it. Of course, we corrected this.

Siding is easily pulled off in Waterford, Virginia.

Siding is easily pulled off. Chimney is one coat stucco to match the front and side of the house.

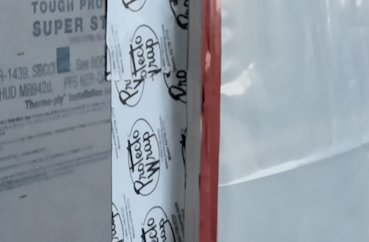

Protecto wrap tape

The back of the windows are sealed with Protecto wrap tape. Any water that penetrates the stucco won't run behind the window.

one coat stucco.

A cross section of one coat stucco. One coat stucco has a thin basecoat and a synthetic finish.

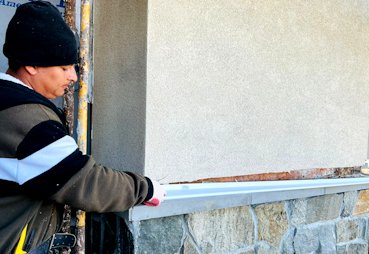

flashing over the stone water table.

We cut of the one coat stucco to put flashing over the stone water table.

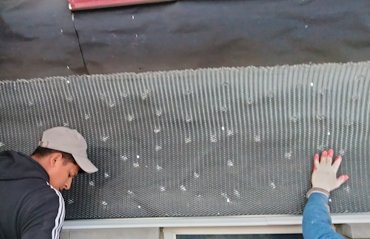

We made our own self furring lath by beating flat lath with a hammer

We made our own self furring lath by beating flat lath with a hammer. Materials have been in short supply.

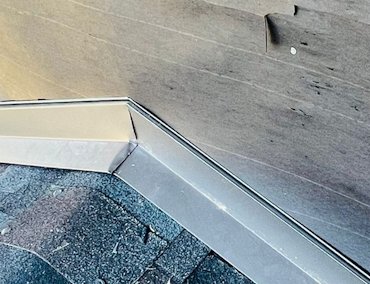

counter flashing on the roofs

We put on a counter flashing on the roofs. Flashing is overlapped with our weep stops and tar paper.

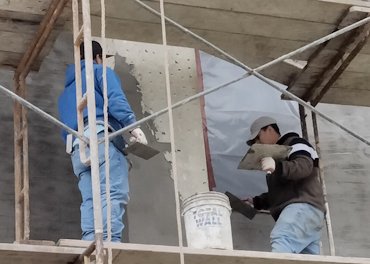

One coat stucco is chipped and a bonding coat applied

One coat stucco is chipped and a bonding coat applied.

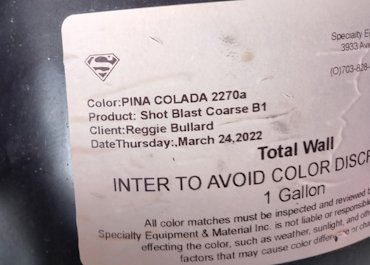

Synthetic finish.

Synthetic finish is by Total Wall.

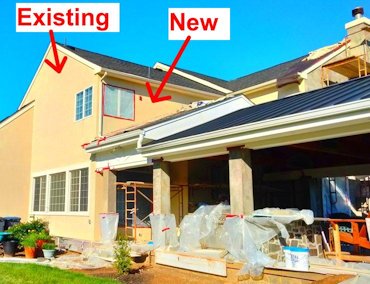

Color matches on the money.

Color matches on the money.

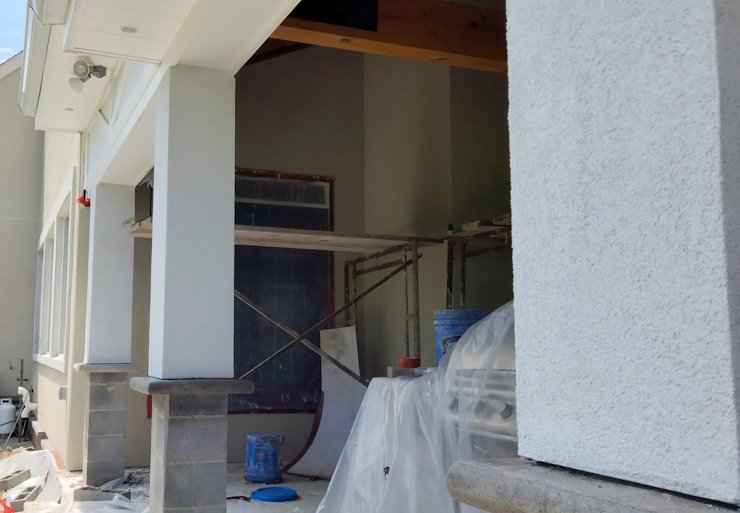

                Columns on the pavillion are white.

Columns on the pavillion are white.
