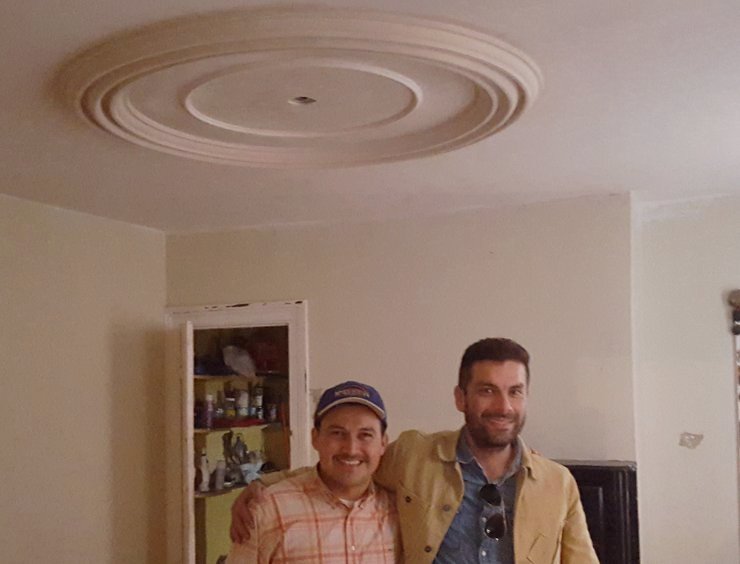

Juan, right, poses under his new ring with Salvador
Elegant ornamental ring is historically correct in this
1872 townhouse.
⇉ MORE DETAILS HERE ! ⇇
Jobs in progress #143
Updated March 18, 2016

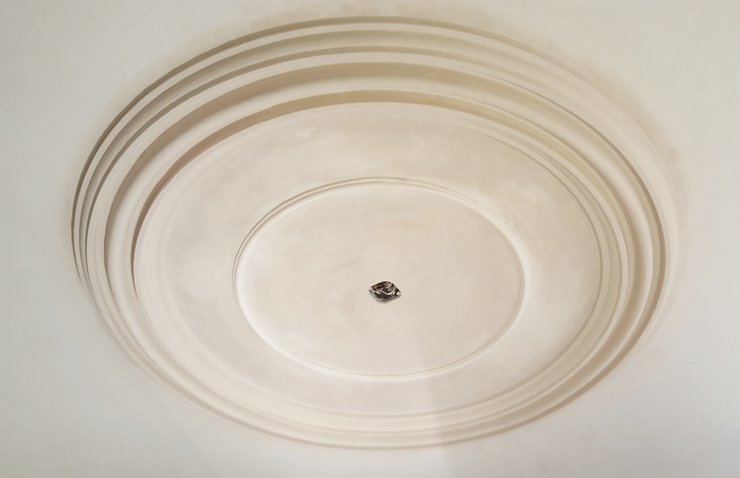

Ornamental plaster ring in Baltimore
A view of the finished ring.
The area of a circle is Ⲡ R2
Dad: What did you learn in school today ?
Son: Ⲡ R2
Dad: You big dummy, pie are round. Pie aren't square.
⇉ MORE DETAILS HERE ! ⇇

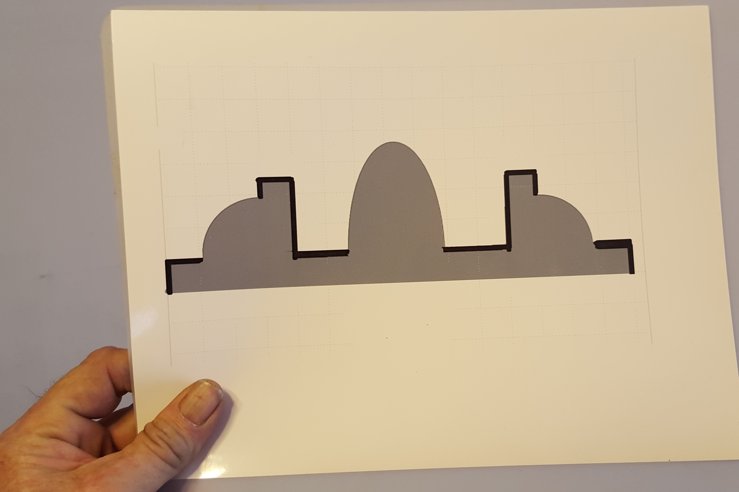

I drew the profile and printed it out on Heavy stock
I designed the ring with LibreOffice Draw and Kolour
paint, which is like MSPaint, only for Linux. I had to
mention I'm a Linux user.
⇉ MORE DETAILS HERE ! ⇇

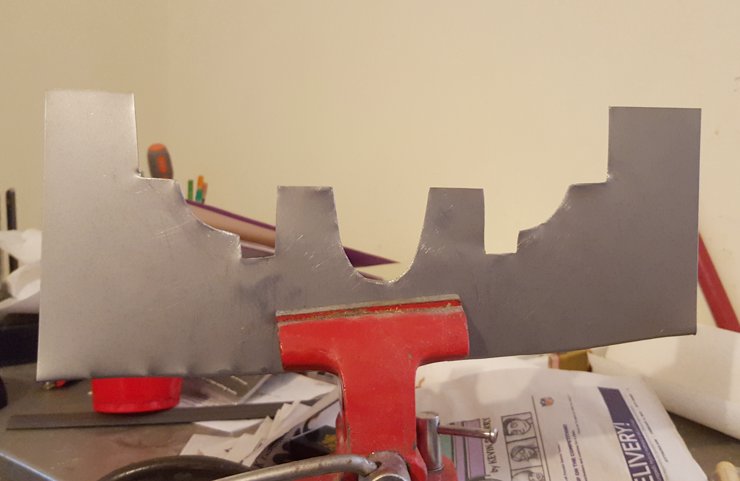

I traced the image on metal and cut and filed the knife in a vise.
After six hours of cutting and filing, I kicked back and
took a break. Almost finished.
⇉ MORE DETAILS HERE ! ⇇

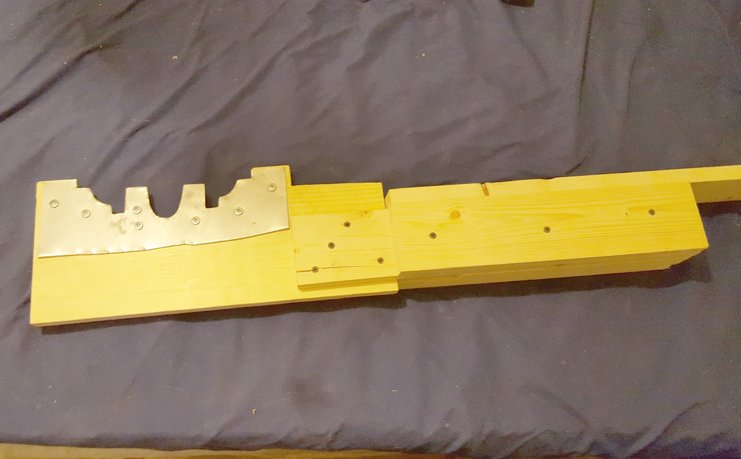

Next I assembled the swing arm.
The arm is ready to bolt to the ceiling. There was six
inches of snow on the ground, so there was nothing to do
anyway.
⇉ MORE DETAILS HERE ! ⇇

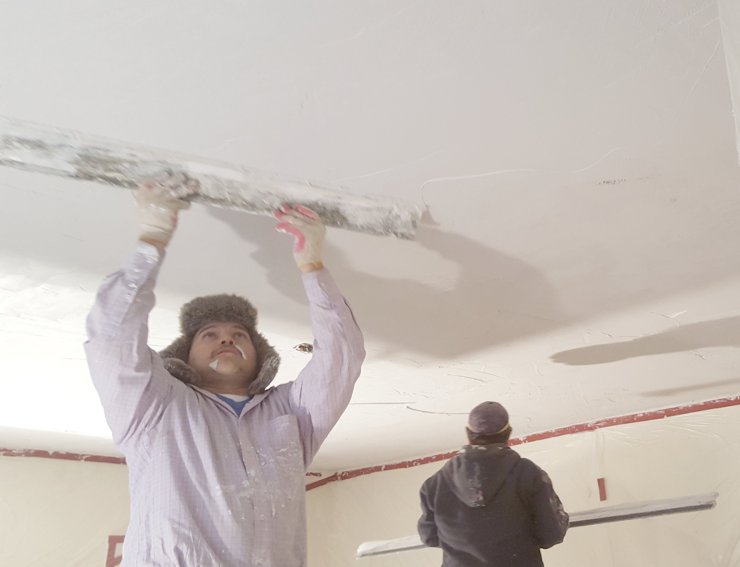

The ceiling is brown coated and rodded off.
The ceiling must be straight for this to work.
⇉ MORE DETAILS HERE ! ⇇

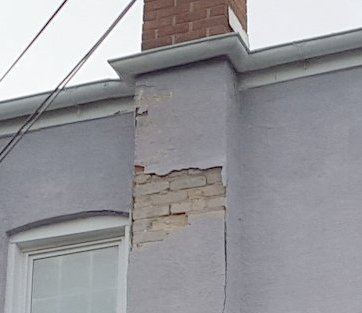

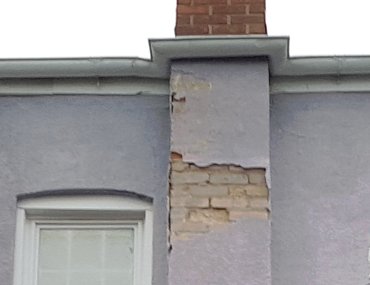

Stucco chimney in Washington, DC
I didn't need my drone to find out why the stucco failed.
Chimney flashing or drip edge failed.
⇉ MORE DETAILS HERE ! ⇇

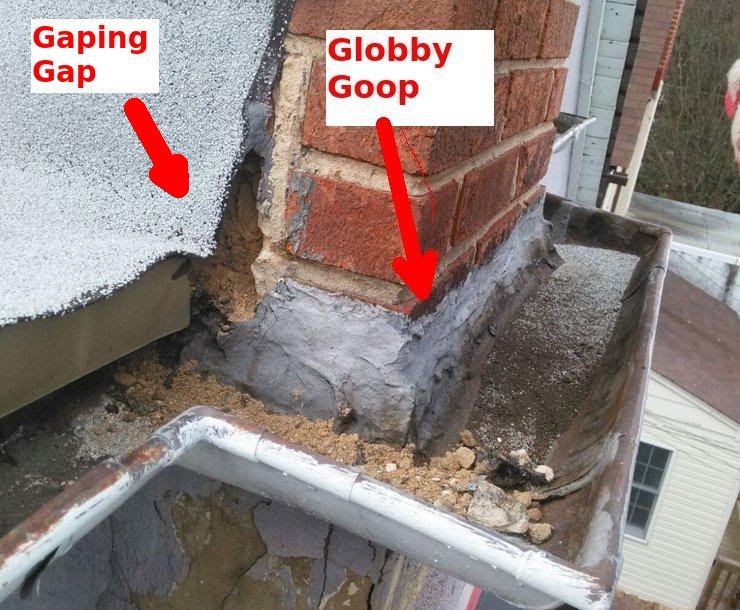

A Goofy Guy Glopped a Glob of Goo on the Gutter.
Goof didn't Give a Gob about the Gaping Gap.
⇉ MORE DETAILS HERE ! ⇇
IMPORTANT. The flashing must be angled into the brick
joint.
If this isn't done on a brick chimney it will leak.
⇉ MORE DETAILS HERE ! ⇇

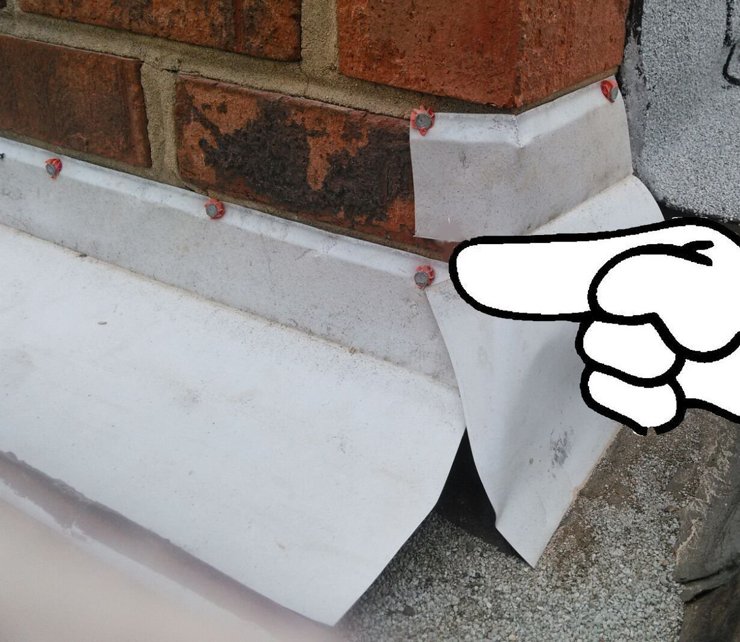

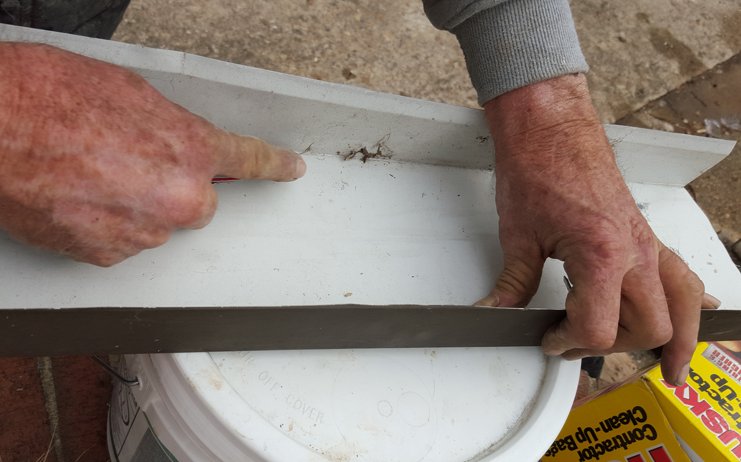

A piece of old coping I saved from Reston worked perfectly.
I cut off one flange and I had a counter flashing and
drip edge.
⇉ MORE DETAILS HERE ! ⇇

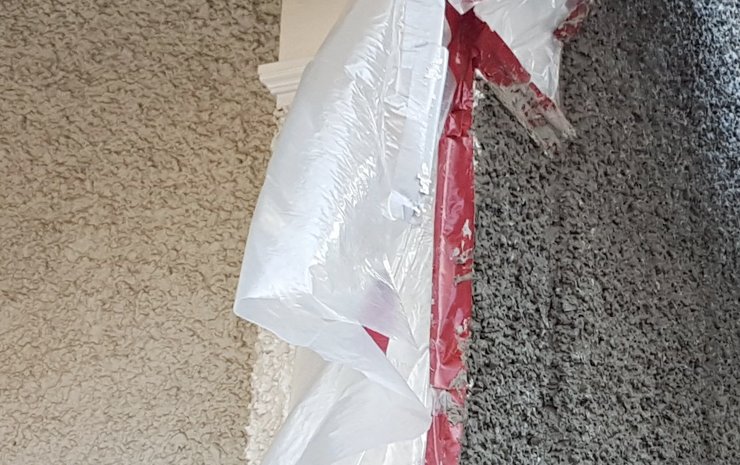

The Pebble Dash Kings still rule the roost
After: New matches the old on the money
⇉ MORE DETAILS HERE ! ⇇

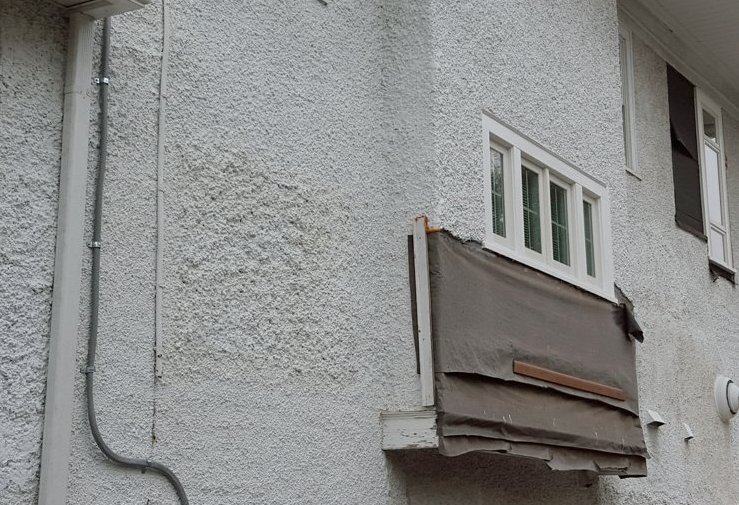

The old wall had it's share of patches.
Note how the lack of flashing above the window causes rot below the window.
⇉ MORE DETAILS HERE ! ⇇

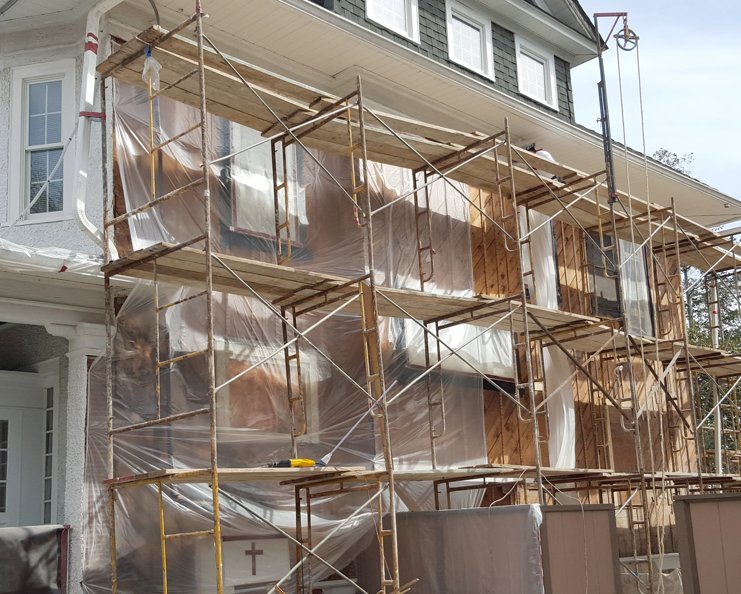

Stucco off, the wall is covered with plastic in case of rain.
⇉ MORE DETAILS HERE ! ⇇

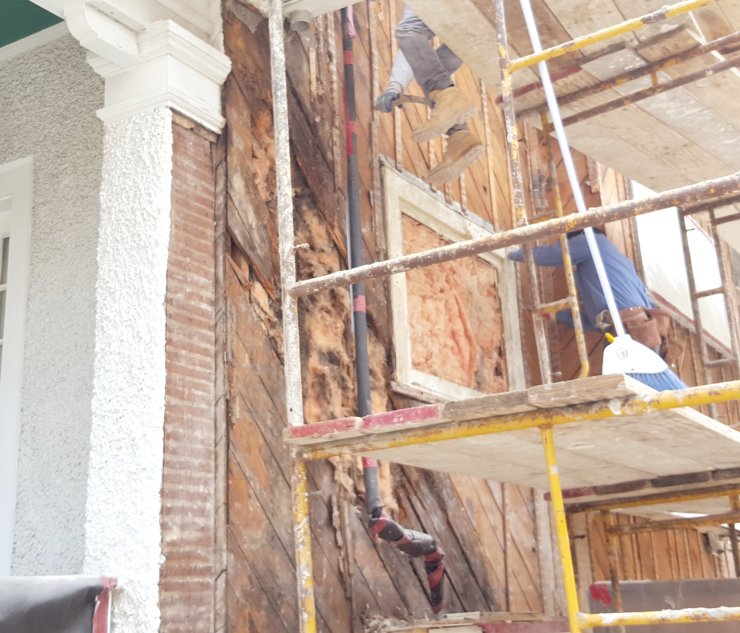

Bad rot is discovered under the porch roof.
⇉ MORE DETAILS HERE ! ⇇

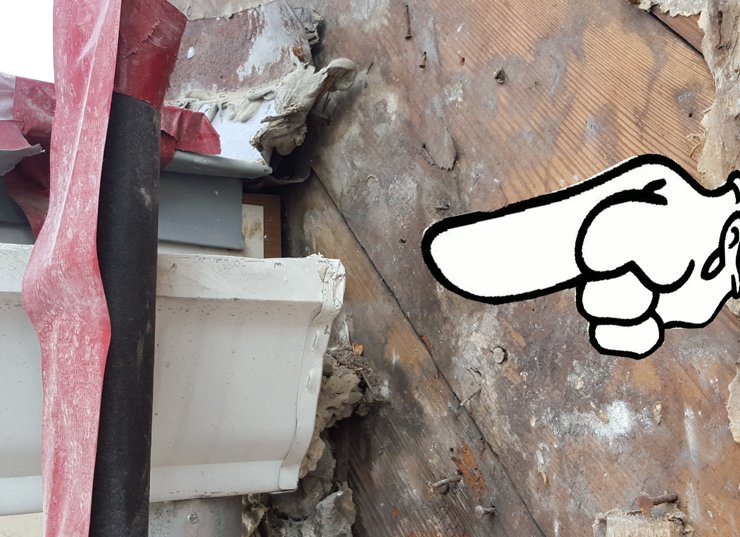

Water runs off the roof between the gutter and the wall.
⇉ MORE DETAILS HERE ! ⇇

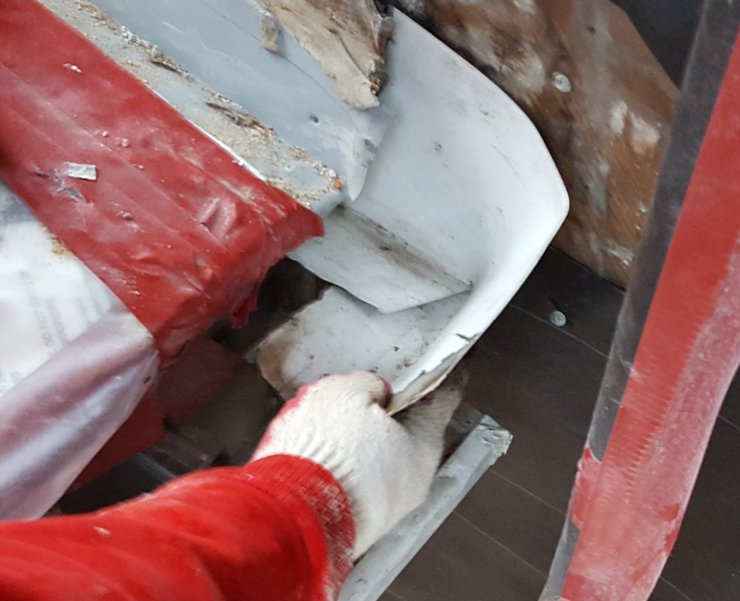

We put in a kick out flashing to divert water into the gutter.
⇉ MORE DETAILS HERE ! ⇇

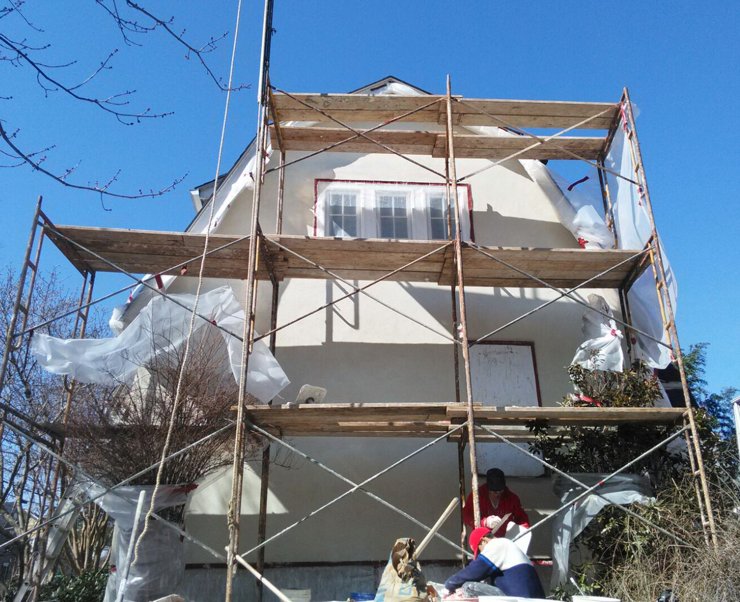

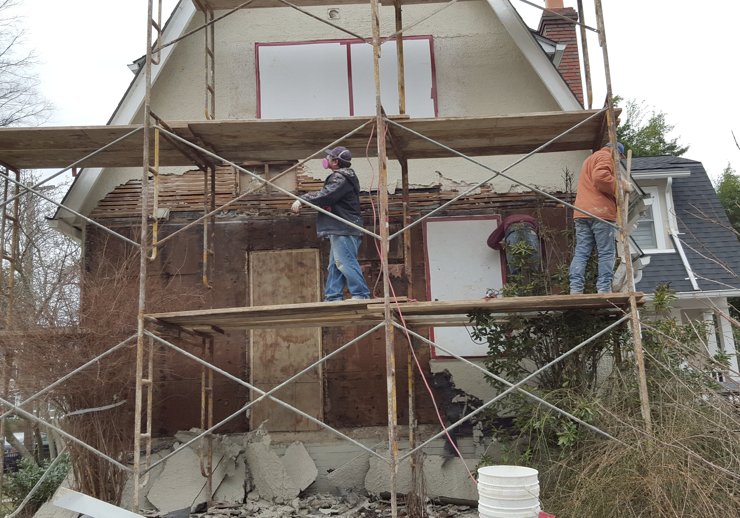

Stucco replaced in Chevy Chase
After years of patches and leaks, the old stucco had to go.
⇉ MORE DETAILS HERE ! ⇇
After
⇉ MORE DETAILS HERE ! ⇇

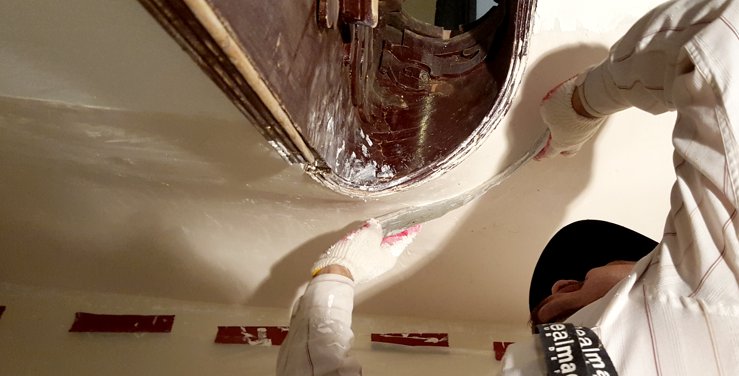

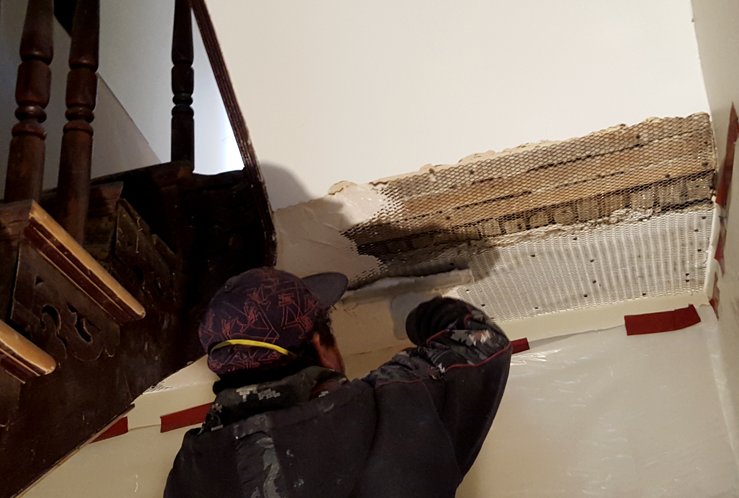

Curved plaster ceiling restored
Ceiling was contaminated with drywall.
Curves were run with a piece of sheet metal
More details on this project next update.

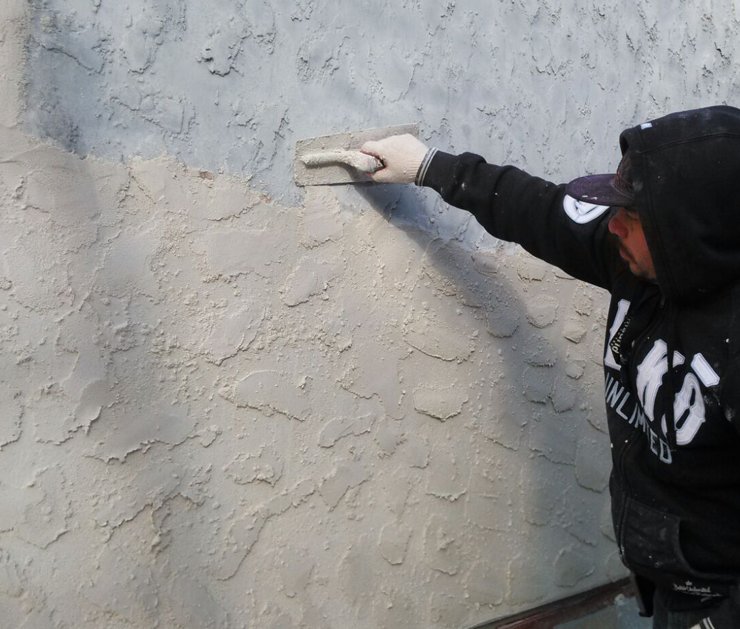

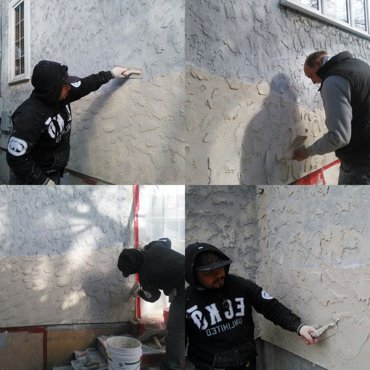

Patch and match - Stucco repair
Patches on this 100 year old house in Washington, DC
Finish coat matches on the money

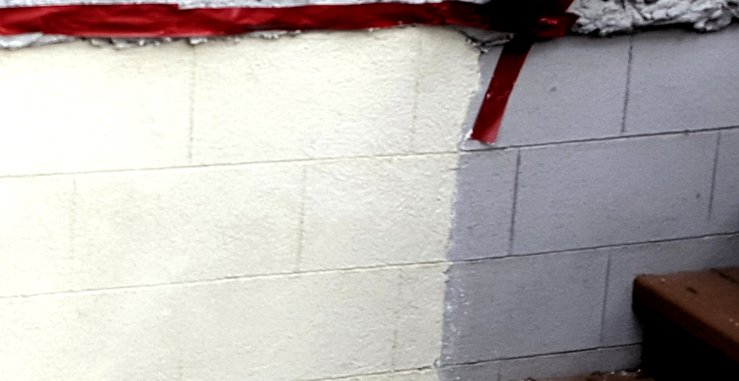

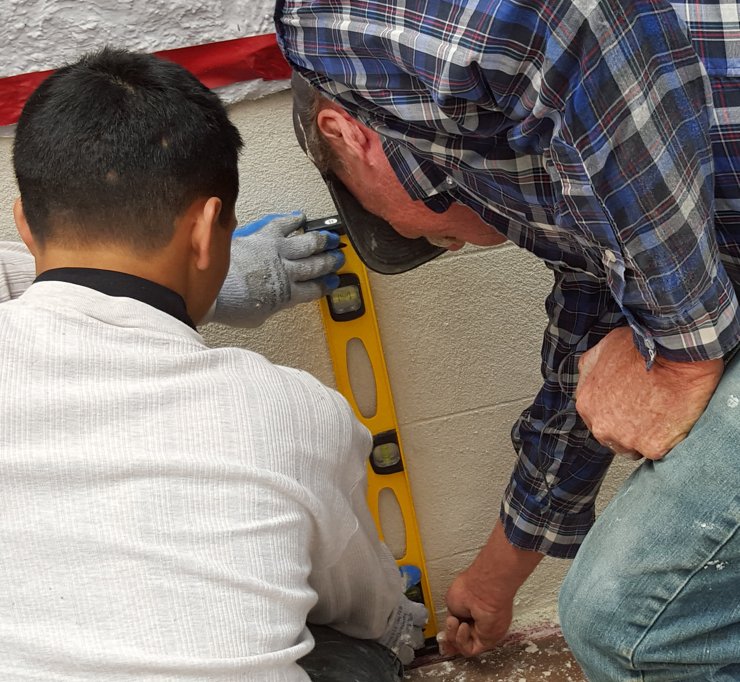

Stucco repair in Arlington, Virginia
Stucco scored to look like block.
