Stucco and plaster jobs in progress-updated February 16, 2016

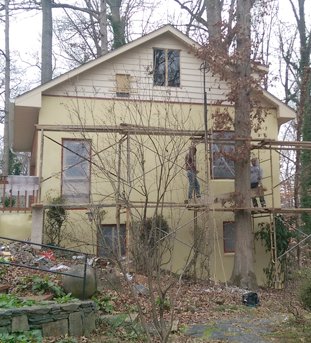

Real cement stucco replaced with real cement stucco
in Springfield, Virginia.

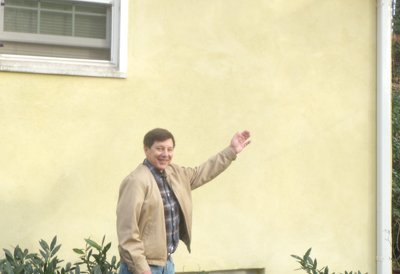

Phil shows off his new REAL cement stucco. The color is a custom color from EXPO stucco in San Diego. |

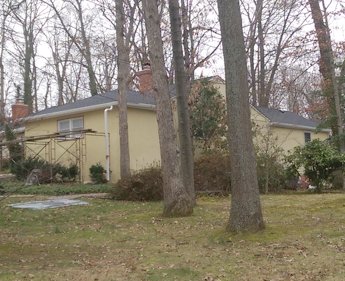

There always seem to be trees in the way of my pictures.. |

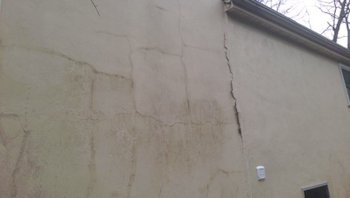

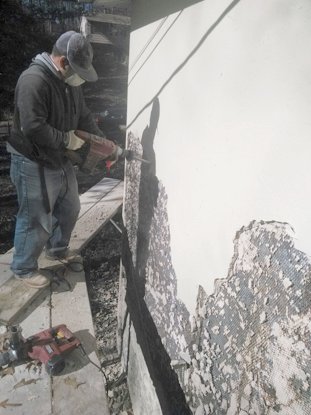

Old 1960's stucco was in sorry shape. After years of leaks, patches |
Who you gonna call ? |

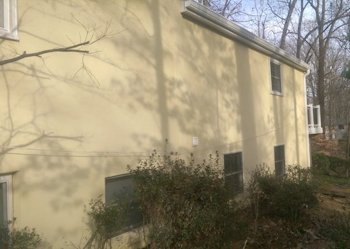

Finished wall. The finish is, of course, REAL portland cement and REAL sand. The color is a custom color from EXPO stucco.Maurice at EXPO duplicated a color from the Sherwin-Williams color fan. |
Garage is stuccoed to match. |

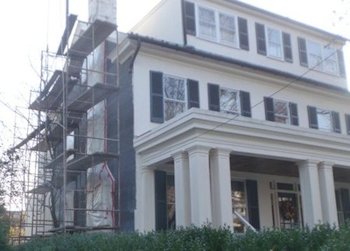

100 year old stucco replaced in Chevy Chase, MD

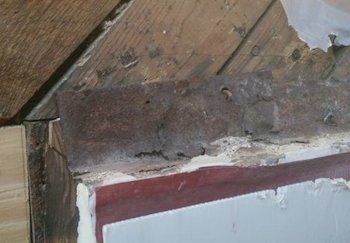

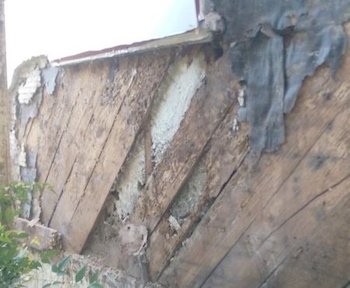

One of the reasons for the stucco failure is the old steel flashing had rotted away, rotting the wood framing under the window. |
Lack of flashing OVER the window causes rot BELOW the window. |
Sometime in the past, the downspouts were stopped up, leading to rot. |

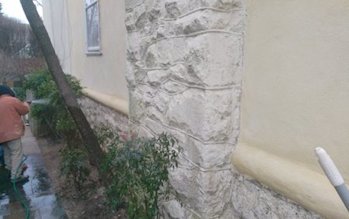

Fast forward to the finished wall showing our curved band at the bottom. Details like this show off the versatility of stucco. The REAL cement finish is colored using paint tint.More here... |
Tudor stucco replaced
in Arlington, Virginia

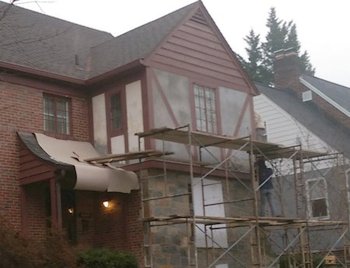

This old stucco on this tudor house had been patched up and re coated and was ready to be replaced. We matched the finish on an addition done by the late Eugene Mason. Mr. Mason used to recommend me to a lot of jobs. |

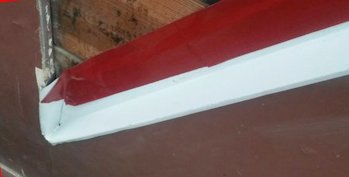

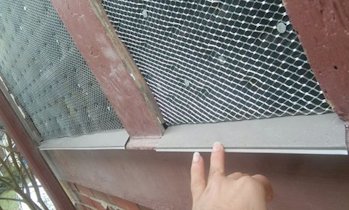

Tudor trim boards need flashing just like windows to prevent water infiltration. |
|
|

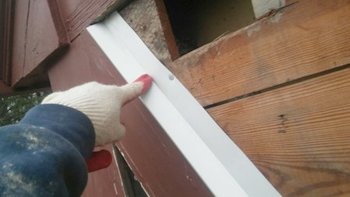

Diagonal trim boards are flashed as well. This is another Frequently Neglected Thing, or FNT. |
A water funnel is prevented by bending the diagonal flashing up the vertical flashing a few inches. |
Stucco addition done by the competition is rescued
in Arlington, Virginia

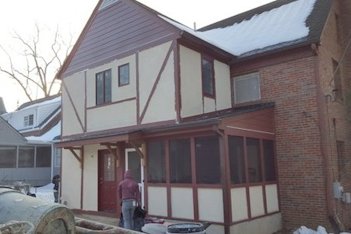

Our finished addition. The color is used by adding a paint tint to the mortar. This is the back of the same house as above.
|

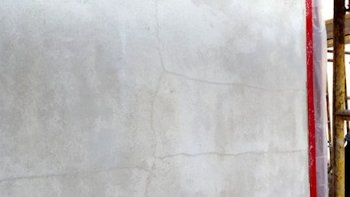

The finish coat is excessively cracked, probably due to too much
|

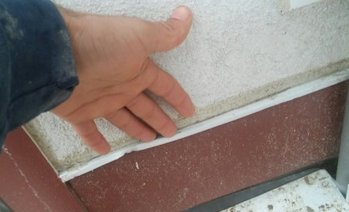

The flashing on the trim boards and windows was angled backwards, deflecting water into the house. Also, there was a big ugly gob of caulk along the outside edge of the panels.
|

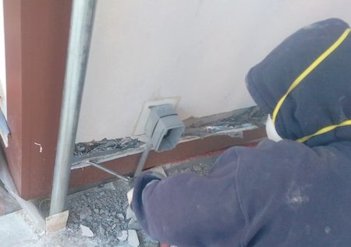

We cut of the stucco back to the sheathing and ripped out the offensive flashing.
|
Plaster ceilings replaced in Baltimore, Maryland

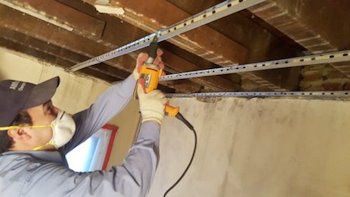

This RC-1 channel is the ticket for furring down old ceilings. The channel screws on one side and floats, taking out half of the wavy gravy from the ceiling. These old joists are always crooked and super hard. We straightened the ceiling more with the basecoat and the finish coat.
|

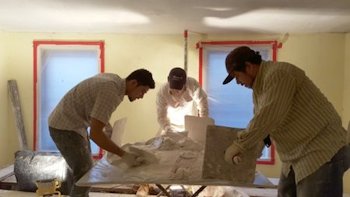

Making a gauge, or mixing a batch of white mortar, in this case moulding plaster and lime, on the mortar board. We are working on a 1872 townhouse in the Union Square area of Baltimore.
|
