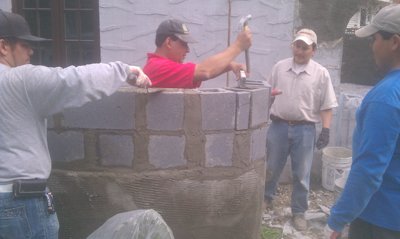

The wall at the front entrance is raised up 2 courses of block. |

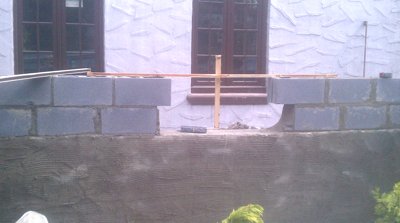

A pivoting
swing arm is used to lay out the curve. |
Brown coat
on the front knee wall. |

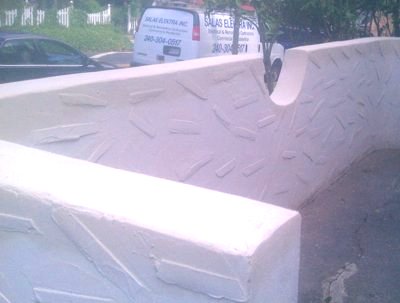

The front
porch is now a nice semi private place to sit. |

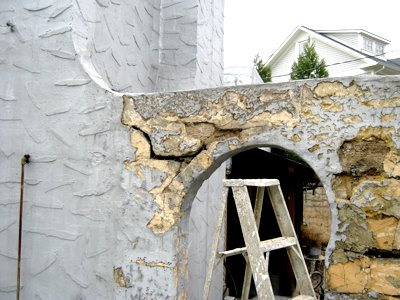

Old arch is chipped and
prepared, and loose areas removed. Note how the arch leans over to the
right. |

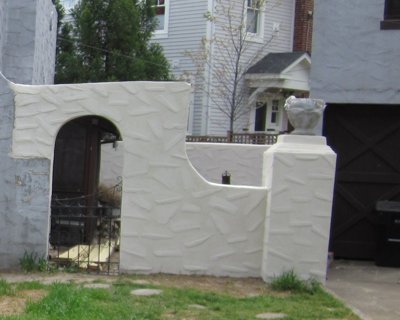

The finished
arch and columns show the curved theme of this nearly hundred year old stucco house. |
. |
|

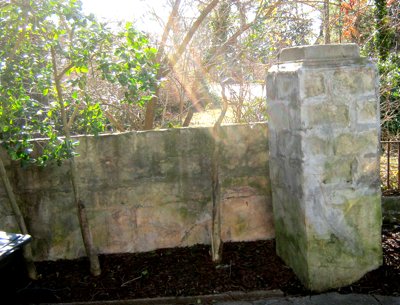

A lot of these walls had never been painted. The original color was made from yellow sand and white lime or portland. |

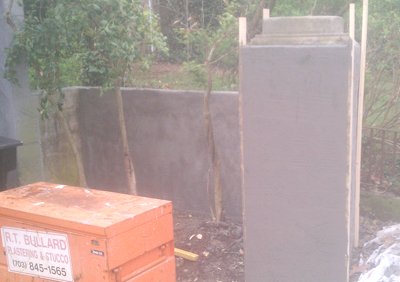

Columns were trued up by setting wood strips and filling in. This method is old fashioned, but we still do it. |

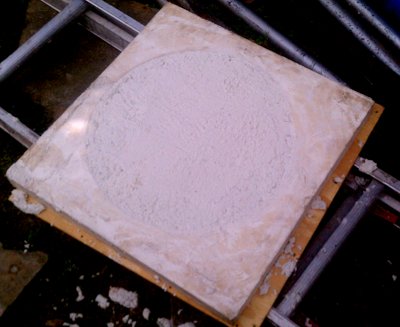

Some left over White stucco finish was poured into the mold Proteus made from an
old table. If you didn't see how Proteus made the mold, please click here. |
The finished medallion has a hole drilled in the back, and is hung on the wall like a picture. Also a big glob of mortar with plenty of flex-con (an adhesive admixture) makes sure it won't fall off. |

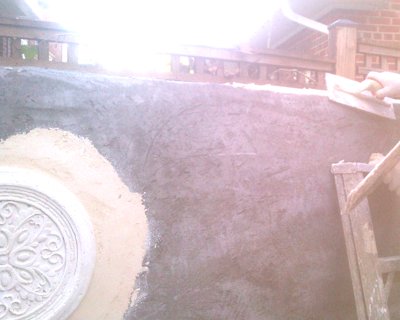

The edge of the medallion is embedded in the
mortar. The top is finished first and rounded off for good water run-off. |

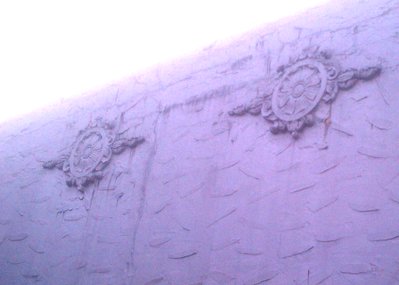

Some of the old medallions around the existing
house. |

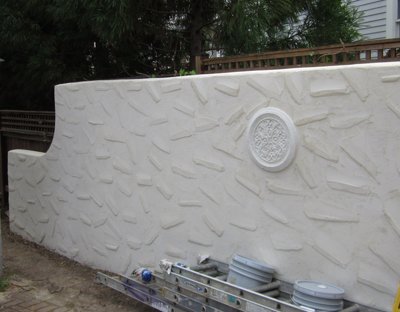

Finished wall. |

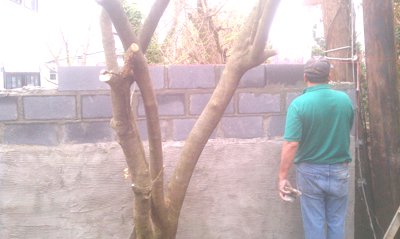

The wall between the neighbor's is raised up 3
courses of block. |

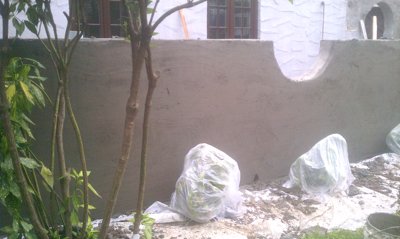

The end of the wall is curved to match the theme of the house. |

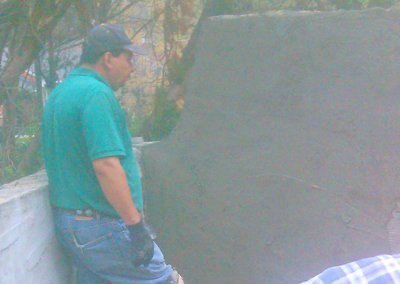

The finish coat is put on in two steps: a scratch
coat and then the
scallops. |

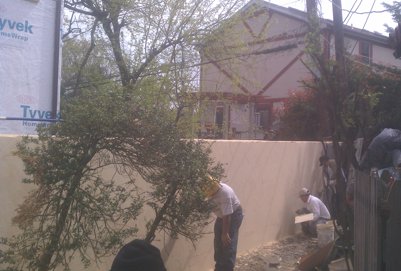

It doesn't look like it but this wall is 100 feet long. The finished color is yellow quarry sand and white portland cement, close to the color of the original house. |
