                            Almost 13 years of jobs in progress, update #120 !

Jobs in progress contains some 400 pages. Here, you will find a wealth of informaton on the world's oldest builing trade, plaster, both interior plaster, and exterior cement plaster, also known as stucco. check out the past updates. A table of contents is forthcoming, like I did on the Stucco News.


EIFS replaced with REAL stucco in McLean, Virginia

I made 3 pages for this project:

Details: How we did features with mortar and NOT foam

Scratch and brown coat.

Flashing and lath

Info about the finish will be on the next update

Details:
How we did the decorative features
Stucco scored to look like stone
                blocks
Solid stucco window sill
Front entrance is scored to look like stone blocks.

More details here..

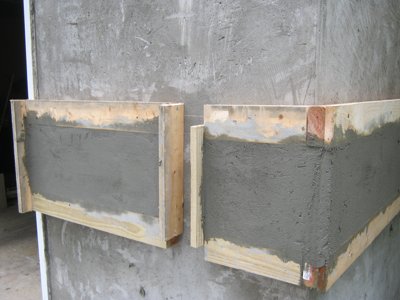

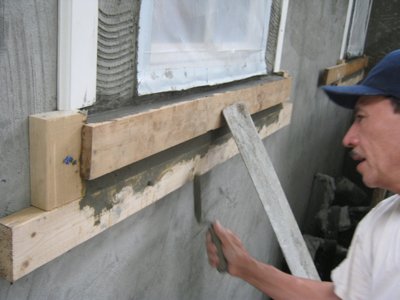

Solid window sill is formed and filled.
The top will be angled down when we put on the finish coat.
More details here..

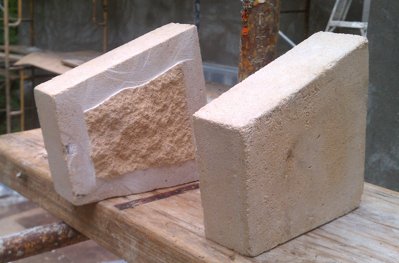

keystoneA real keystone is split in half to use over the arches.

More details here..

Decorative stucco band
Decorative band is thick and dramatic.
The thickness is a 2x4 and a1x4.Note the chase we made for the downspout.
More details here..


Brown coat:
Filling and straightening the wall.
Stucco brown coat
screed

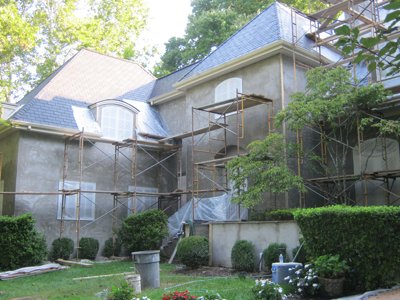

The brown coat finished, waiting for the details and the finish, or color coat.
The brown coat is the most important. If the brown coat is bumpy and wavy, the finish is usually bumpy and wavy.
More details here..

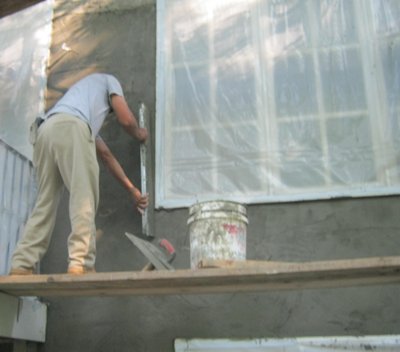

A string line is pulled to straighten the walls.
The strip of mortar on the wall is called a screed.

More details here..

Wall is trued up around the window
Stucco Arch
                opening
Wall is trued up around the window with a home made rod. The windows should all have the same margin, all the way around.
More details here..

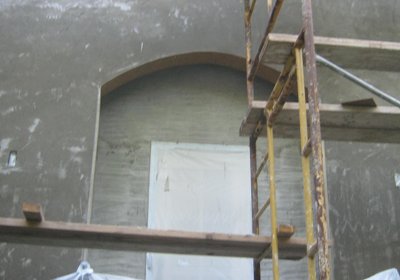

Arch opening is formed with one bys and a
strip of masonite, then filled in.

More details here..



Flashing, lath and tarpaper
Window
                flashing

joints
                of the flagstone

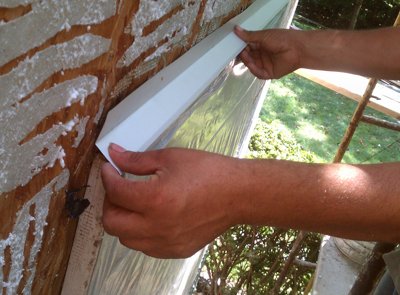

Window flashing put on angling the front edge down. The original house had no flashing at all.

More details here..

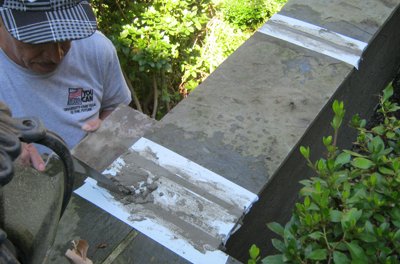

Here we filled in the joints of the flagstone cap on this knee wall with mortar with plenty of Flex-con in the mortar. A cause of stucco failure
on knee walls or retaining walls is leaking joints.
More details here..

Two
                layers or tarpaper

Weep screed

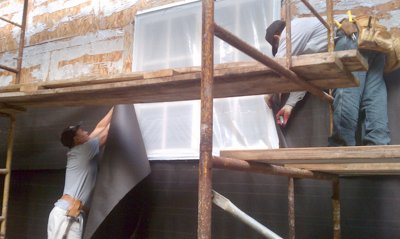

Two layers or tarpaper are used. It is important to put on the tarpaper from the bottom up, and overlapping to avoid water infiltration. I have picture of someone in Maryland putting tarpaper on from the top down. He had a truck with lettered with stucco real big on the side.
More details here..


Weep screeds are put on all around the house.
A gap is left below for water drainage.

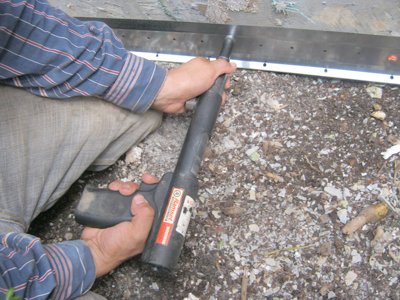

Here the weep screed is shot on the concrete with a Ramset gun.

More details here..


Patch and match
Stucco repair and plaster repair.
Plaster ceiling replaced
Plaster ceiling
              replaced

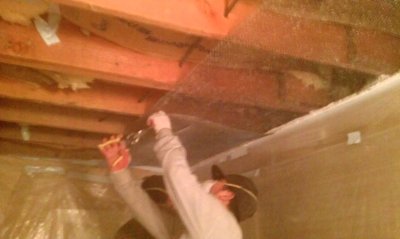

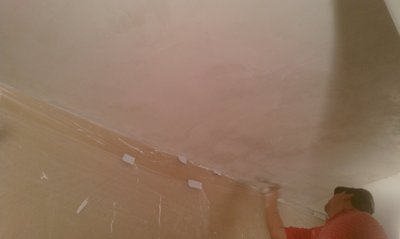

Ceiling is replaced the same day using metal
lath, moulding plaster and lime.
The original ceiling was rock lath. Metal is used
for a thick, solid patch.

Lath put on in the morning, Ceiling finished in the afternoon.
Here, the finish coat is troweled smooth.

pebble dash
              kings still rock in Washington, DC
The pebble dash
              kings still rock in Washington, DC

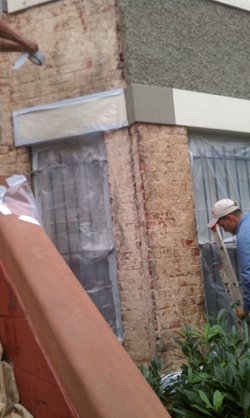

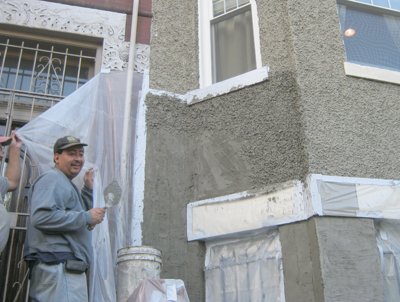

The pebble dash kings still rock in Washington, DC.
Old water damage is stripped down to the brick, and pebble mix dashed on.
